Great	1		Open Diapason	8
	2		Stopped Diapason	8
	3		Gamba	8
	4		Principal	4
	5		Spitz Flute	4
	6		Nazard	2	2/3
	7		Fifteenth	2
	8		Tierce	1	3/5
	9		Mixture	IV
	10		Trumpet	8
	i		Tremulant
	ii		Swell to Great
Swell	11		Gedackt	8
	12		Viola	8
	13		Voix Celeste	8
	14		Principal	4
	15		Chimney Flute	4
	16		Gemshorn	2
	17		Sesquialtera	II
	18		Mixture	III
	19		Cremona	16
	20		Hautboy	8
	iii		Tremulant
Pedal	21		Sub Bass	16
	22		Principal	8
	23		Flute	8
	24		Octave	4
	25		Trombone	16
	iv		Swell to Pedal
	v		Great to Pedal

Tracker key action : slider soundboards

Electric stop and combination actions

click to view main image of Headington organ

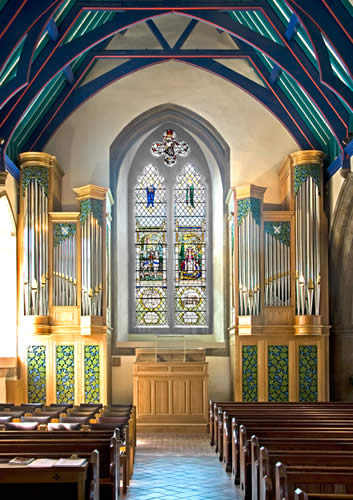

the completed organ: April 2009

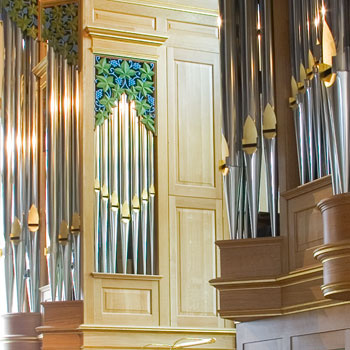

The new organ stands at the west end of the nave, the north case housing the Great organ at impost level with the swell box behind the lower frets, and the south case housing the pedal organ. The oak case was designed to work in harmony with the restored west window, previously obscured. The carvings were designed by John Brennan, and  have been coloured to blend both with the window and the bold roof colours. Gilded pipe mouths and moulding lines complete the picture.

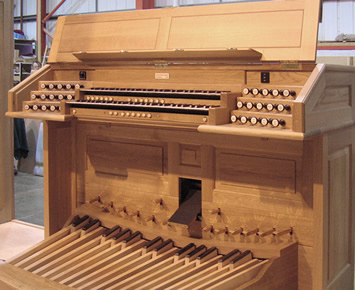

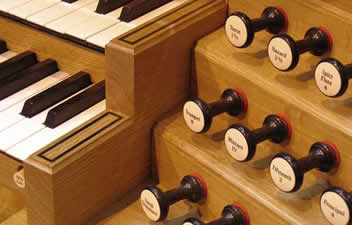

A terraced console is positioned between the two cases, offering the organist good sight to the nave altar.

The interesting west window depicts St Mary the Virgin and St Anne in the upper half, and on the lower left Simon de Montfort, founder of English Parliaments, and to the right, Vashti Queen of Persia, in memory of Vashti de Montfort Wellborne of Barton Manor, Headington.

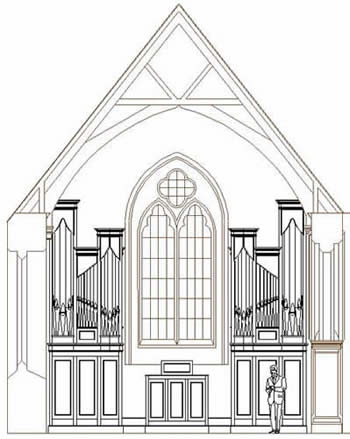

an early sketch for the instrument (2004)
